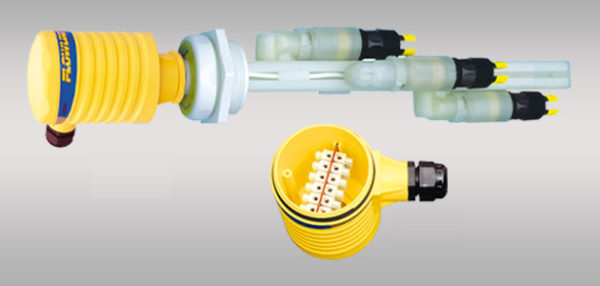

Flowline Smart Trak™ AX23 Full eller Tom Nivåbryter med kontroller

Length: 20cm to 3m
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Orientation: ± 20° vertical
Switch points: 2 (field adjustable)
LED indication: Power, relay & sensor
Supply voltage: 120 / 240 VAC @ 50-60 Hz
Contact type: (1) SPDT relay, latching
Contact rating: 250 VAC @ 16A
Contact output: Selectable NO / NC
Contact latch: Selectable ON / OFF
Process temp.: C: -40° to 80°
Installed height: -431_: 14.4 cm, -432_: 18.8 cm
Pressure: Atmospheric
Enclosure rating: NEMA 4X (IP65)
Process mount: 2” NPT (2” G)
Classification: General purpose
Compliance: CE

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline Smart Trak™ AX23 Full eller Tom Nivåbryter med kontroller

APPLICATION

The general purpose level switch package provides automatic tank filling or emptying up to 10’ (3m) between two adjustable level switch points. The compact relay controller with optional strobe provides one latching 16A relay for pump or valve control. Offered in three sensor technologies, choose the type based upon your application media. Select ultrasonic for chemicals and light weight oils; vibration for wastewater with light coating or scaling; and buoyancy for clean water and non-coating chemicals. This PP level switch package is selected for day tank, skid or machine, cooling tower, waste sump and process tank applications, requiring detection and control.

FEATURES

  • Fail-safe relay control of pumps or valves with adjustable time delay
  • Offered in three sensor technologies for broad application coverage
  • Easy setup with LED indicators for sensor, power and relay status
  • Rugged polypropylene construction for use with corrosive liquids
  • Adjustable switch cars enable sensor position adjustments in the field
  • Invert switch changes relay state from NO to NC without rewiring



Datablad

Manual

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Sensortype

Ultrasonisk, Flottør, Vibrasjon

Strobelys

Uten, Med

Gjengetype

2" NPT, 2" G
