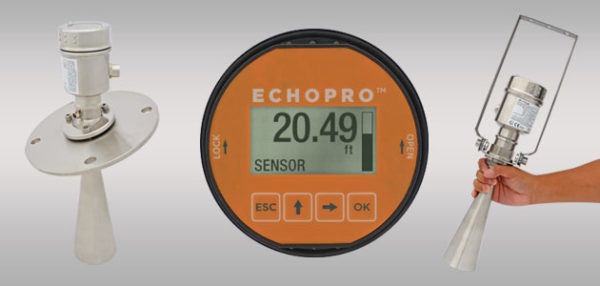

Flowline EchoPro® LR41 Egensikker Radar Nivåsensor for faste stoffer

Range: 30cm to 70m
Frequency: 26 GHz.
Accuracy: ± 15mm
Dead band: 30cm
Beam angle: -5_21-4: 8º
Configuration: Push button, HART 7
Supply voltage: 21.6 to 26.4 VDC
Signal output: 4-20 mA, two-wire, HART 7
Process temp.: C: -40º to 400º
Pressure: Atmospheric
Enclosure rating: IP67
Air purge fitting: 1/4” (6.3mm) I.D. tubing
Process mount: -_0: 1 1/2” NPT, -_4: 4” gimbal flange (ANSI)
Classification: Intrinsically safe
Approvals: ATEX  II 1C Ex ia III C T76º C…T146º C Da; IEC Ex ia III C T76º C…T146º C Da; CSA Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; (T6…T3) Class I Zone 0 AEx ia IIC (T6…T3) Ga Zone 20 AEx ia IIIC (T76ºC to T146ºC) Da Ex ia IIC (T6…T3) Ga Ex ia IIIC (T76ºC to T146ºC) Da
Certification: FCC
Compliance: CE, RoHS

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Handlekurv
Mer informasjon

Beskrivelse

Flowline EchoPro® LR41 Egensikker Radar Nivåsensor for faste stoffer

APPLICATION

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 229.7’ (70m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact solids level sensor is intended for dry solid media including aggregates, grains, pellets, powders and building materials. Select this sensor for challenging process conditions with moderate to significant dust, and installation with an adjustable gimbal flange or mounting bracket. Typical applications include silos, stockpiles, transfer stations and crushers.

FEATURES

  • Rugged 316L stainless steel antenna and process mount
  • Configuration via push button display or HART communicator
  • Gimbal flange for easy positioning with the angle of repose
  • Antenna air-purge for use with significant dust conditions
  • LCD displays level in feet or meters with percent of span bar
  • Optional display mode indicates the echo signal return curve
  • Fail-safe diagnostics with selectable signal fail-safe outputs
  • PTFE antenna cover for use with moderate dust conditions
  • Recognition, storage and rejection of false echo signal returns
  • IP67 stainless enclosure with polycarbonate display window



Kontrolltegning

Datablad

Manual

Quick Start



Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Varianter

4” (98mm) horn, 1-1/2” NPT, 316L, 4” (98mm) horn w/shield, 1-1/2” NPT, 316L, 4” (98mm) horn, 4” ANSI flange, 316L, 4” (98mm) horn w/shield, 4” ANSI flange, 316L
