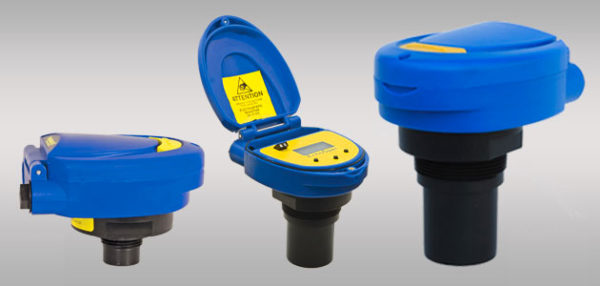

Flowline EchoSpan® LU80-84 Ultrasonisk Nivåsensor Push button

Range: LU80: 4” to 9.8’ (10cm to 3m), LU81: 8” to 18.0’ (20cm to 5.5m), LU83: 8” to 26.2’ (20cm to 8m), LU84: 12” to 32.8’ (30cm to 10m)
Accuracy: ± 0.2% of range
Resolution: LU80: 0.019” (0.5mm), LU81/83: 0.039” (1mm), LU84: 0.078” (2mm)
Dead band: LU80: 4” (10cm), LU81/83: 8” (20cm), LU84: 12” (30cm)
Beam width: LU80: 2” (5cm), LU81/83/84: 3” (7.6cm)
Configuration: Push button
Display type: LCD, 6-digit
Display units: Inch, cm and percent
Supply voltage: 12-28 VDC
Loop resist.: 500 Ohms @ 24 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: -7° to 140°, C: -20° to 60°
Pressure: MWP = 30 psi (2 bar)
Enclosure rating: NEMA 4X (IP65)
Process mount: LU80: 1” NPT (1” G), LU81/83/84: 2” NPT (2” G)
Compliance: CE, RoHS

Datablad

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline EchoSpan® Ultrasonisk Nivåsensor

Nivåsensor for generelle formål. Gir kontinuerlig måling opp til 10 meter. 4-20 mA analog output som konfigureres via integrert push-knapp display. Denne non-contact sensoren er best for nivåmåling av etsende, klebrig eller avfallsvæsker i bulk tanker, tanklastebiler, dagtanker, avfall og kjemiske tanker m.m.



Funksjoner

  • Kontinuerlig målerekkevidde fra 3m – 10m
  • 4-20 mA output for lenger signalrekkevidde opp til 300 meter
  • Konfigureres raskt og enkelt via knapper
  • LCD display viser nivå i tommer, centimeter og prosent
  • Tynn målesøyle for applikasjoner med begrenset plass
  • PVDF transduser og NEMA 4X polykarbonat kapsling
  • Automatisk temperaturkompensering for nøyaktig måling



Datablad

Manual

Quick Start LU80

Quick Start LU81/83/84

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Rekkevidde

3 meter, 5,5 meter, 8 meter, 10 meter

Gjengetype

G (BSP vanligst i Norge), NPT (Amerikansk standard)
