Flowline EchoWave® LG10-11 Guided Wave Nivåsensor

Range: Rod & coaxial: 3m, cable: 5.5m
Accuracy: ± 3mm
Dead band: Top: 10cm, bottom: 5cm
Repeatability: < 2mm
Resolution: < 2mm
Configuration: WebCal PC, Windows®, USB 2.0
Supply voltage: 10-30 VDC
Signal output: 4-20mA, 3-wire
Process temp.: C: -40º to 150º
Pressure: -14.5 to 250 PSI, (-1 to 17 bar)
Enclosure rating: NEMA 4
Process mount: 3/4” NPT (3/4” G)
Classification: General purpose
Certification: CSA, NRTL
Compliance: CE, CRN, RoHS

Mer informasjon


Flowline EchoWave® LG10-11 Guided Wave Nivåsensor for Væsker

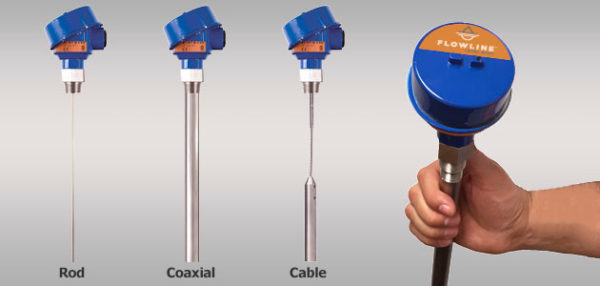

Offered in three probe types, the general purpose guided wave level transmitter provides continuous level measurement up to 18’ (5.5m) with a 4-20 mA signal output, and is configured via our free WebCal software. This liquid level sensor is applied in non-turbulent environments with foam, vapor, condensation, temperature or pressure. Select the rod or cable probe for use with clean, dirty, coating or crystallizing liquids in above grade metal or below grade tanks of any material. Select the coaxial probe for use with clean, non-coating or crystallizing liquids in above or below grade tanks of any material. Standard probe lengths may be user cut in the field. Typical applications include small bulk storage, day tank, skid or machine, IBC or drum, process tank, cooling tower and waste sumps.


  • Offered in standard or custom probe lengths up to 18’ (5.5m)
  • Configuration is easy via WebCal software and USB adapter
  • Rugged 316L stainless steel probe and process mount
  • 4” (10cm) dead band enables utilization of the entire tank
  • Disturbance scan maps and rejects false echo signal returns
  • Rugged NEMA 4 aluminum enclosure with 316L process mount
  • Self diagnostics with five selectable fail-safe signal outputs




Quick Start

WebCal Software


Type Sonde

0,9m stang (rod), 1,8m stang (rod), 3m stang (rod), 0,9m Coaxial, 1,8m Coaxial, 3m Coaxial, 5,5m kabel (cable)


3/4″ NPT, 3/4″ G

FOB USB Adapter

Uten, Med



Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
