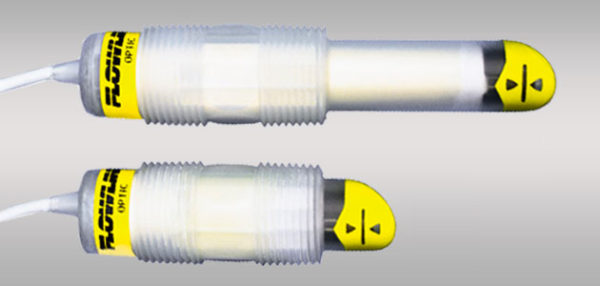

Flowline Switch-Tek™ LO10 Optisk lekkasjebryter

Orientation: Universal
Accuracy: ± 1mm in water
Repeatibility: ± 0.5mm in water
Supply voltage: 12-36 VDC
Contact type: (1) SPST relay
Contact rating: 60 VA, 1A maximum
Contact output: Selectable NO / NC
Process temp.: C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
Sensor rating: -1XX5: NEMA 6 (IP68), -2XX5: NEMA 4X (IP65)
Sensor material: -1XX5: PP, -2XX5: PFA
Process mount: 3/4” NPT (3/4” G / Rp)
Mount. gasket: Viton® (G version only)
Classification: General purpose
Compliance: CE

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline Switch-Tek™ LO10 Optisk lekkasjebryter

APPLICATION

The general purpose optic leak switch provides liquid leak detection in and around secondary containment sumps, tanks and piping systems with a 1A relay output. Media examples include sulfuric acid and sodium hypochlorite. The submersible PP or PFA leak switch sensor is mounted through the containment wall or within the interstitial space, and connected to a PLC or relay controller.

FEATURES

  • Rugged polypropylene or PFA Teflon® sensor and cable for corrosive liquids
  • 60VA SPST relay selectable NO or NC via power supply wiring polarity
  • Sensor may be located up to 1000’ from a Flowline relay controller



Datablad

Manual

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Sensormateriale

PP, PFA

Sensorlengde

Kort, Lang

Gjengetype

3/4″ NPT, 3/4″ G
