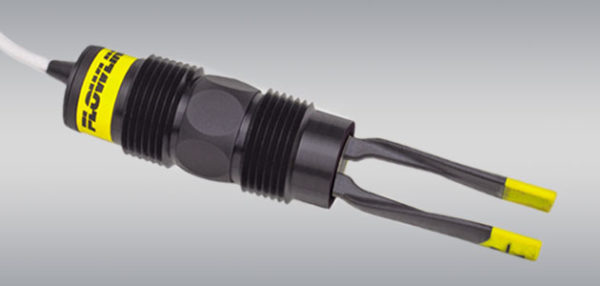

Flowline Switch-Tek™ LZ12 Nivåbryter vibrasjon

Orientation: Universal
Accuracy: ± 1mm in water
Repeatibility: ± 0.5mm in water
Supply voltage: 12-30 VDC
Contact type: (1) SPST relay
Contact rating: 60 VA, 1A maximum
Contact output: Selectable NO / NC
Maint. alarm: NPN transistor, 10 mA maximum
Process temp.: C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
Sensor rating: NEMA 6 (IP68)
Sensor material: Ryton® (glass filled)
Cable length: 3m
Process mount: 3/4” NPT (3/4” G)
Mount. gasket: Viton®
Classification: General purpose
Compliance: CE

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline Switch-Tek™ LZ12 Nivåbryter vibrasjon

APPLICATION

The general purpose vibration liquid level switch provides high or low liquid level detection of dirty liquids or those with light to medium coating or scaling characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and copper sulfate. For optimum performance, the sensor automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible PP-Ryton® level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.

FEATURES

  • Automatic coating adjustment optimizes sensor performance
  • Submersible Ryton® sensor with polypropylene cable for corrosive liquids
  • Maintenance alarm proactively alerts user if sensor cleaning is required
  • 60VA SPST relay selectable NO or NC via power supply wiring polarity
  • Compatible with Smart Trak and Switch-Pak installation fittings



Datablad

Manual

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Gjengetype

3/4″ NPT, 3/4″ G
