Produktnummer: LR30-0010-10 Kategori: , Stikkord: , , ,

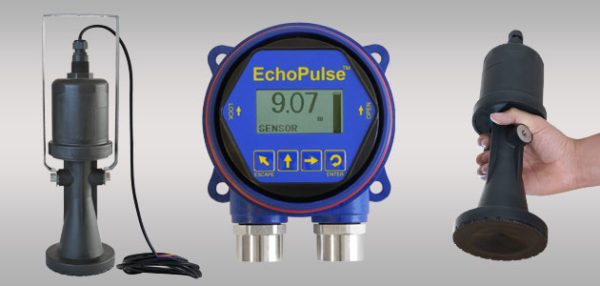

Flowline EchoPulse® LR30 Radar Nivåsensor

SENSOR:
Range: 12” to 98.4’ (30cm to 30m)
Frequency: 26 GHz.
Accuracy: ± 3mm
Dead band: 12” (30cm)
Beam angle: 12º
Supply voltage: 16-26 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: -40º to 212º, C: -40º to 100º
Pressure: Atmospheric
Enclosure rating: IP68
Process mount: 304 bracket or 1” NPT
DISPLAY:
Display type: LCD, dot matrix
Display units: Feet and meters
Display bar: Percent of span
Display graph: Echo signal curve
Configuration: Push button
Enclosure type: Wall mount
Enclosure rating: IP67
COMMON:
Certification: cTUVus, FCC
Compliance: CE, RoHS

Datablad



Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

EchoPulse® Radar Nivåsensor

The general purpose 26 GHz. pulse radar level transmitter provides continuous level measurement up to 98.4’ (30m) with a 4-20 mA signal output, and is configured via its remote push button display module. The non-contact liquid level sensor is intended for industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or open channel applications located below or above grade. Select this sensor for challenging process conditions that may include light surface foam or agitation, small trash or plant material, wind, condensation or vapor. Each comes with a 32.8’ (10m) cable, mounting bracket and display module. The sensor is designed for bracket mount installation suspended above the liquid level.

FEATURES

  • Rugged IP68 sensor enclosure with 304 mounting bracket
  • Simple configuration via remote push button display module
  • 26 GHz. pulse radar is unaffected by sump process conditions
  • Wall mounted display with windowed enclosure rated IP67
  • 12” (30cm) dead band enables utilization of the entire sump
  • LCD displays level in feet or meters with percent of span bar
  • Optional display mode indicates the echo signal return curve
  • Self diagnostics with selectable fail-safe signal outputs
  • Recognition, storage and rejection of false echo signal returns



Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Flens størrelse

4″ ANSI flens, 6″ ANSI flens
