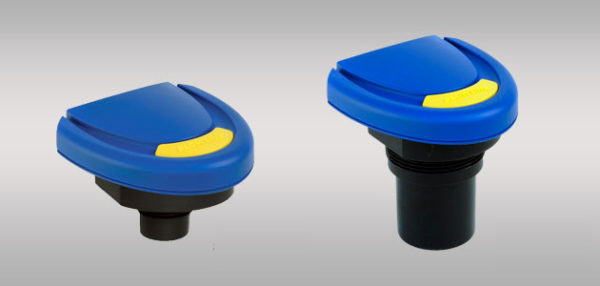

Flowline EchoSonic® LU23-29 Ultrasonisk Nivåsensor

Range: LU27: 4” to 9.8’ (10cm to 3m), LU23: 8” to 18.0’ (20cm to 5.5m), LU28: 8” to 26.2’ (20cm to 8m), LU29: 8” to 32.8’ (20cm to 10m)
Accuracy: ± 0.2% of range
Resolution: LU27: 0.019” (0.5mm), LU23: 0.039” (1mm), LU28/29: 0.079” (2mm)
Dead band: LU27: 4” (10cm), LU23/28/29: 8” (20cm)
Beam width: LU27: 2” (5cm), LU23/28/29: 3” (7.6cm)
Configuration: WebCal™ PC, Windows®, USB 2.0
Supply voltage: 24 VDC (loop)
Signal output: 4-20 mA, two-wire
Process temp.: F: -4º to 140º, C: -20º to 60º
Pressure: MWP = 30 PSI (2 bar)
Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
Compliance: CE, RoHS
Approvals: cFMus

Datablad

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Handlekurv
Mer informasjon

Beskrivelse

Flowline EchoSonic® Ultrasonisk Nivåsensor

Nivåsensor for generelle formål. Gir kontinuerlig måling opp til 10 meter. 4-20 mA analog output som konfigueres via WebCal software. Denne non-contact sensoren er best for nivåmåling av etsende, klebrig elle avfallsvæsker i bulk tanker, tanklastebiler, dagtanker, avfall og kjemiske tanker m.m.



Funksjoner

  • Kontinuerlig målerekkevidde fra 3m – 10m
  • 4-20 mA output for lenger signalrekkevidde opp til 300 meter
  • Konfigureres raskt og enkelt via WebCal software og USB adapter
  • Tynn målesøyle for applikasjoner med begrenset plass
  • PVDF transduser og 6P polykarbonat kapsling
  • Kort dead band maksimerer fyllekapasitet
  • Automatisk temperaturkompensering for nøyaktig måling



Datablad

Manual

Quick Start LU23/28/29

Quick Start LU27

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Rekkevidde

3 meter, 5,5 meter, 8 meter, 10 meter

Gjengetype

G (BSP vanligst i Norge), NPT (Amerikansk standard)

FOB USB Adapter

Med, Uten
