Beskrivelse

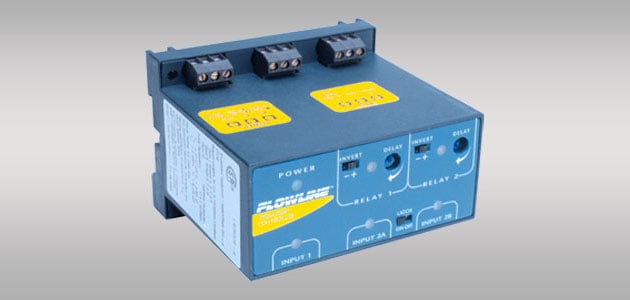

Flowline Switch-Pro™ LCXX Nivåbryter kontroller

APPLICATION

Available in CSA approved, general purpose (LC4X) or isolation (LC9X) versions with built-in intrinsic safety barriers for use with associated apparatus, the level switch controller is offered in three configurations for pump and valve control. The LC40/90 accepts one level switch input and provides one 10A relay. The LC41 accepts two level switch inputs and provides one latching 10A relay for automatic fill or empty control. The LC42/92 accepts three level switch inputs with one latching 10A relay output for automatic fill or empty control, and a second non-latching 10A relay for high level alarm or low level alarm. Select the general purpose or isolation controller type and model based on your classification and control requirements. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.

FEATURES

Fail-safe relay control of pumps or valves with 0-60 second delay
Optional built-in intrinsic safety barriers for hazardous applications
Easy setup with LED indicators for sensor, power and relay status
35 mm DIN rail mount PP enclosure with removable terminal strips
Invert switch changes relay state from NO to NC without rewiring
Available with custom NEMA boxes and tank alarm accessories

Datablad

LC40 Manual

LC90 Manual

Tilleggsinformasjon

Type	General Purpose, Isolation
Antall Relé	1 relé, 2 relé
Sensorinput	1 sensor, 2 sensorer, 3 sensorer

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
