Produktnummer: LP15-1425 Kategori: , Stikkord: , ,

LP15-1425 – 3/4″ G

Orientation: Universal
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Dielectric range: > 20 constants
Conductive range: > 100 μ
Supply voltage: 12-36 VDC
Contact type: (1) SPST relay
Contact rating: 60 VA, 1A maximum
Contact output: Selectable NO / NC
Process temp: C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25º C., derated @ 1.667 psi (0.113 bar) per ºC. above 25º C.
Sensor rating: NEMA 6 (IP68)
Sensor material: Polypropylene
Process mount: 3/4” NPT (3/4” G)
Mount. gasket: Viton® (G version only)
Classification: General purpose
Compliance: CE

Handlekurv
Mer informasjon

Beskrivelse

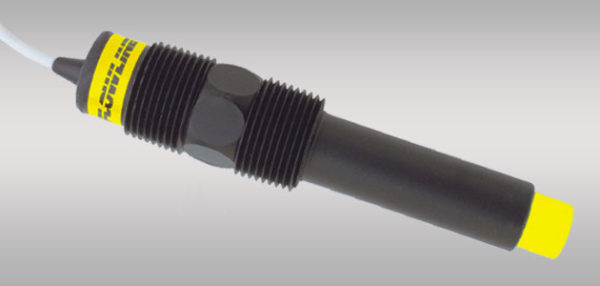

Flowline Switch-Tek™ LP15 Capacitance Liquid Level Switch

APPLICATION

The general purpose guard capacitance point level switch provides high or low liquid level detection of water based conductive liquids with light coating, crystallizing or scaling characteristics with a 1A relay output. Media examples include copper sulfate and brine. For best performance, install the sensor vertically and the RF guard circuit eliminates the coating signal path between the active and reference electrodes. The submersible polypropylene liquid level sensor can be mounted inside the tank or through non-metallic tank walls as a high level alarm or low level alarm.

FEATURES

  • Guard circuit optimizes performance in coating type media
  • Submersible PP sensor body and cable for corrosive liquids
  • 60VA relay selectable NO or NC via power supply wiring polarity
  • Compatible with Switch-Pak fitting for vertical tank installation



Datablad

Manual

Tilleggsinformasjon

Gjengetype

3/4" NPT, 3/4" G

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
