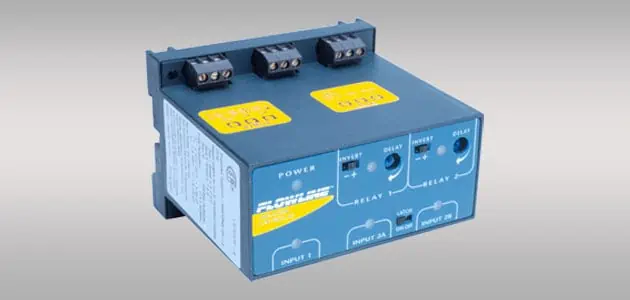

Flowline Switch-Pro™ LCXX Nivåbryter kontroller

Supply voltage: 120/240 VAC @ 50-60 Hz
Consumption: 5 watts maximum
Sensor inputs: LC40/90: (1) two wire level switch, LC41: (2) two wire level switches, LC42/92: (3) two wire level switches
Sensor supply: 13.5 VDC @ 27 mA
LED indication: Sensor, power & relay
Contact type: LC40/90: (1) SPDT relay, LC41: (1) SPDT latching relay, LC42/92: (2) SPDT relays (one latching)
Contact rating: 250 VAC @ 10A
Contact output: Selectable NO / NC
Contact latch: LC40/90: N/A, LC41: Selectable ON / OFF, LC42/92: Selectable ON / OFF
Contact delay: 0-60 seconds
Enclosure type: 35mm DIN rail
Enclosure mat.: PP, UL94VO
Classification: LC4X: General purpose, LC9X: Associated apparatus
Approvals: CSA, LR 79326
Safety: Class 1, Groups A, B, C (LC9X only) & D; Class II, Groups E, F & G; Class III
Parameters: Voc = 17.47 VDC; Isc = (LC9X only) 0.4597A; Ca = 0.494 μF; a = 0.119 mH

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline Switch-Pro™ LCXX Nivåbryter kontroller

APPLICATION

Available in CSA approved, general purpose (LC4X) or isolation (LC9X) versions with built-in intrinsic safety barriers for use with associated apparatus, the level switch controller is offered in three configurations for pump and valve control. The LC40/90 accepts one level switch input and provides one 10A relay. The LC41 accepts two level switch inputs and provides one latching 10A relay for automatic fill or empty control. The LC42/92 accepts three level switch inputs with one latching 10A relay output for automatic fill or empty control, and a second non-latching 10A relay for high level alarm or low level alarm. Select the general purpose or isolation controller type and model based on your classification and control requirements. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.

FEATURES

  • Fail-safe relay control of pumps or valves with 0-60 second delay
  • Optional built-in intrinsic safety barriers for hazardous applications
  • Easy setup with LED indicators for sensor, power and relay status
  • 35 mm DIN rail mount PP enclosure with removable terminal strips
  • Invert switch changes relay state from NO to NC without rewiring
  • Available with custom NEMA boxes and tank alarm accessories



Datablad

LC40 Manual

LC90 Manual

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Type

General Purpose, Isolation

Antall Relé

1 relé, 2 relé

Sensorinput

1 sensor, 2 sensorer, 3 sensorer
