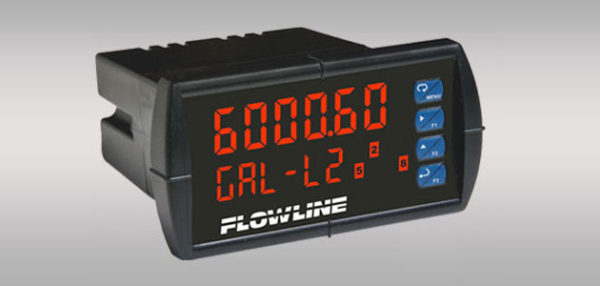

Flowline DataView™ LI55 Nivåmåler kontroller

Display type: LED, 6-digit
Display units: Engineering
Display output: -99999 to 999999
Display height: Main: 15mm, Secondary: 12mm
Decimal point: Floating
LED indication: Relay status
Configuration: Push button
Linearization: 2-32 point function
Sensor input: (1) 4-20 mA or 0-10 VDC
Consumption: VAC: 20 watts max., VDC: 15 watts max.
Sensor supply: 24 VDC ± 5% @ 200 mA
Repeater output: 4-20 mA, 24 VDC ± 5% @ 40 mA supply
Contact type: SPDT relays
Contact rating: 3A @ 30 VDC, 250 VAC resistive load
Ambient temp.: C: -40° to 65°
Enclosure type: 1/8 DIN, panel mount
Enclosure rating: NEMA 4X (IP65) faceplate
Enclosure mat’l: Polycarbonate
Classification: General purpose
Compliance: CE
Approvals: UL, cULus listed, E160849, 508 industrial control equipment

Mer informasjon


Flowline DataView™ LI55 Nivåmåler kontroller


The general purpose AC or DC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter and is offered in three configurations with optional two or four programmable relays and an isolated 4-20 mA repeater. Each relay can be configured on a single set point as a high or low level alarm, or latched on two set points for automatic fill or empty control in simplex or duplex modes. Select this panel mount controller for use with general purpose two or three-wire level sensors. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.


  • LED main display and secondary unit display with relay status
  • Easy configuration via the push button display module
  • 1/8 DIN enclosure with NEMA 4X faceplate and shallow case
  • Isolated power supply to sensor with optional 4-20 mA repeater
  • Non-volatile memory with security password protection
  • 32-point linearization function for volumetric measurement
  • Available with NEMA boxes and tank alarm accessories



Quick Start



230V, 24V

Antall relé

Ingen, med 2 relé, med 4 relé

4-20mA Repeater

Uten, Med



Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
