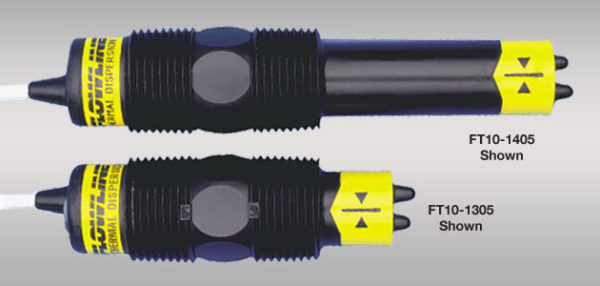

Flowline Thermo-Flo™ XX10 Væske og Gass flow bryter

Set point range: FT10: 0.012 to 0.91 mps, GT10: 0.3 to 27 mps
Factory set point: FT10: .06 mps, GT10: 3 mps
Repeatability: ± 0.5% of set point @ fixed temperature
Response time: 1-10 seconds
Set point adjust.: Potentiometer
Viscosity range: FT10: 1-200 centipoise, GT10: N/A
Supply voltage: 14-36 VDC
Contact type: (1) SPST relay
Contact rating: 60 VA, 1A maximum
Contact output: Selectable NO / NC
Process temp.: C: 0° to 60°
Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
Sensor rating: NEMA 4X (IP65)
Process mount: 3/4” NPT (3/4” G/R)
Mount. gasket: Viton®
Classification: General purpose
Compliance: CE

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline Thermo-Flo™ XX10 Væske og Gass flow bryter

APPLICATION

Offered in liquid and gas sensor types, the general purpose flow switch provides reliable low or no-flow detection of relatively clean, non-coating media with one 1A relay output. Liquid examples include water and acetic acid. Available in Polypropylene-Ryton® and PVDF, the short flow sensor is used in pipe or ducting from 1/2” to 1 1/2”, and the long flow sensor is used in 2” and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.

FEATURES

  • Rugged PP-Ryton® or PVDF sensor for corrosive liquids and gases
  • Adjustable set point with LED for flow or no-flow status indication
  • 60VA relay selectable NO or NC via power supply wiring polarity
  • Solid state sensor is not damaged by over-ranging flow velocities



Datablad

Manual

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Sensortype

Væske, Gass

Sensormateriale

PP, PVDF

Sensorlengde

Kort, Lang

Gjengetype

3/4″ NPT, 3/4″ G
