Flowline Switch-Pro™ LC1X kompakt kontroller for nivåbryter

Supply voltage: 240 VAC, 50-60 Hz
Consumption: 5 watts maximum
Sensor inputs: LC10: (1) two wire level switch, LC11: (2) two wire level switches
Sensor supply: 13.5 VDC @ 27 mA
LED indication: Sensor, power & relay
Strobe type: -10X1: N/A, -10X2: Xenon tube
Strobe flash: -10X1: N/A, 10X2: (1) per second
Contact type: LC10: (1) SPDT relay, LC11: (1) SPDT latching relay
Contact rating: 250 VAC @ 16A
Contact output: Selectable NO / NC
Contact latch: LC10: N/A, LC11: Selectable ON / OFF
Enclosure rating: NEMA 4X (IP65)
Enclosure mat.: -10X1: PP, UL94VO, -10X2: PP, UL94VO & PC
Conduit entrance: 1/2 NPT
Enclosure mount: 3/4” NPT (3/4” G)
Classification: General purpose
Compliance: CE
Approvals: CSA, LR 79326

Handlekurv
Mer informasjon

Beskrivelse

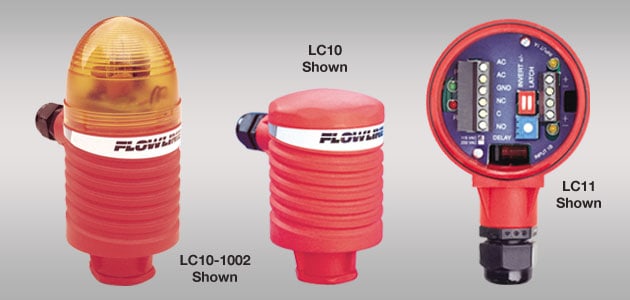

Flowline Switch-Pro™ LC1X kompakt kontroller for nivåbryter

APPLICATION

The general purpose level controller is offered in two configurations for pump and valve control. The LC10 accepts one level sensor input and provides one 16A relay for high level control or low level control. The LC11 accepts two level sensor inputs and provides one latching 16A relay for automatic fill or empty control. The optional flash alarm brings attention to level alarm conditions. Package this level controller with our liquid level switch sensors and fittings.

FEATURES

  • Fail-safe relay control of pumps or valves with 0-60 second delay
  • Optional strobe brings immediate attention to level alarm conditions
  • PP enclosure rated NEMA 4X with swivel base for conduit alignment
  • Easy setup with LED indicators for sensor, power and relay status
  • Invert switch changes relay state from NO to NC without rewiring



Datablad

Manual

Tilleggsinformasjon

Reletype

16A standard, 16A latching

Sensor input

1 Sensor, 2 Sensorer

Gjengetype

3/4″ NPT, 3/4″ G

Strobelys

Uten, Med

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
