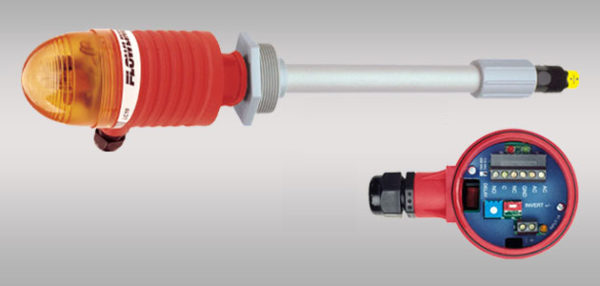

Flowline Switch-Pak™ AX13 Høyt/lavt nivåbryter med kontroller

Length: 15cm to 3m
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Orientation: ± 20° vertical
Switch points: 1 (factory set)
Supply voltage: 120 / 240 VAC @ 50-60 Hz.
LED indication: Sensor, power & relay
Strobe type: -X22X: N/A, -X21X: xenon tube
Strobe flash: -X22X: N/A, -X21X: 1 per second
Contact type: (1) SPDT relay
Contact rating: 250 VAC @ 16A
Contact output: Selectable NO / NC
Process temp.: C: -40° to 80°
Installed height: _21_: 16.5cm, _22_: 12.4cm
Pressure: AV13: 25 psi (1.7 bar), AU13 / AZ13: 150 psi (10 bar)
Enclosure rating: NEMA 4X (IP65)
Conduit entrance: 1/2” NPT
Process mount: -X2X3: 2” NPT, -X2X7: 1-1/2” G
Classification: General purpose
Compliance: CE

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Mer informasjon

Beskrivelse

Flowline Switch-Pak™ AX13 Høyt/lavt nivåbryter med kontroller

APPLICATION

The general purpose level switch package provides high or low liquid level detection with one 16A compact relay controller for pump or valve shut off. The optional flash alarm brings attention to alarm conditions. Available in three level sensor technologies, choose the sensor type based upon your application media. Select ultrasonic for chemicals and light weight oils; vibration for wastewater with light coating or scaling; and buoyancy for clean water and non-coating chemicals. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, requiring detection and control.

FEATURES

  • Fail-safe relay shut off of pumps or valves with adjustable time delay
  • Offered in three sensor technologies for broad application coverage
  • Rugged polypropylene or PVDF construction for use with corrosive liquids
  • Easy setup with LED indicators for sensor, power and relay status
  • Optional strobe brings immediate attention to level alarm conditions
  • PP enclosure rated NEMA 4X with swivel base for conduit alignment
  • Invert switch changes relay state from NO to NC without rewiring



Datablad

Manual

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Sensortype

Ultrasonisk, Flottør, Vibrasjon

Materiale

PP, PVDF

Strobelys

Ja, Nei

Gjengetype

2" NPT, 1-1/2″ G
