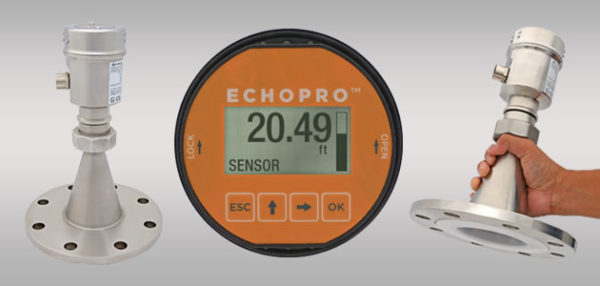

Flowline EchoPro® LR26 Egensikker Radar Nivåsensor

Range: 30cm to 35m
Frequency: 6.3 GHz.
Accuracy: ± 10mm
Dead band: 30cm
Beam angle: 20º
Configuration: Push button, HART 7
Supply voltage: 21.6 to 26.4 VDC
Signal output: 4-20 mA, two-wire, HART 7
Process temp.: C: -40º to 130º
Pressure: -14.5 to 580 psi (-1 to 40 bar)
Enclosure rating: IP67
Process mount: – 40: 4” flange (ANSI), – 60: 6” flange (ANSI)
Classification: Intrinsically safe
Approvals: ATEX  IIG Ex ia II C T6…T3 Ga; IEC Exia IIC T6…T3 Ga; CSA Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; (T6…T3) Class I Zone 0 AEx ia IIC (T6…T3) Ga Zone 20 AEx ia IIIC (T76ºC to T146ºC) Da Ex ia IIC (T6…T3) Ga Ex ia IIIC (T76ºC to T146ºC) Da
Certification: FCC
Compliance: CE, CRN, RoHS



PRIS PÅ FORESPØRSEL

Handlekurv
Mer informasjon

Beskrivelse

Flowline EchoPro® LR26 Egensikker Radar Nivåsensor

APPLICATION

The intrinsically safe 6.3 GHz. pulse radar transmitter provides continuous level measurement up to 114.8’ (35m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact liquid level sensor is intended for chemical and petroleum storage or process applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for harsh process conditions with corrosive or low dielectric media, heavy surface foam or agitation, higher pressure, steam, condensation or vapor, and installation in a flange fitting. Due to the wider beam angle, special attention should be given to ensure that the sensor is located with unobstructed measurement space. Typical applications include process tanks.

FEATURES

  • 316L antenna with PTFE inner shield for corrosive media
  • Configuration via push button display or HART communicator
  • 6.3 GHz. pulse radar is unaffected by most foam and agitation
  • 12” (30cm) dead band enables utilization of the entire tank
  • LCD displays level in feet or meters with percent of span bar
  • Optional display mode indicates the echo signal return curve
  • Auto-temperature compensation for accurate measurement
  • Fail-safe diagnostics with selectable signal fail-safe outputs
  • Recognition, storage and rejection of false echo signal returns
  • IP67 stainless enclosure with polycarbonate display window



Datablad

Manual

Quick Start

Eksempel applikasjoner



Tilleggsinformasjon

Flange

4″ ANSI, 6″ ANSI

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
