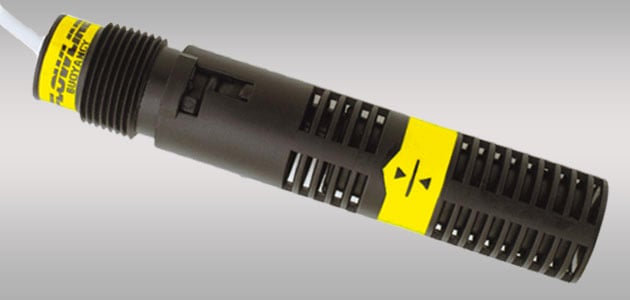

Flowline Switch-Tek™ LV10 Flottør nivåbryter – vertikal

Orientation: ± 20º vertical
Accuracy: ± 2mm in water
Repeatibility: ± 1mm in water
Specific gravity: 0.8 minimum
Contact type: (1) SPDT reed
Contact rating: 15 VA, 0.25A maximum
Contact output: Selectable NO / NC
Process temp.: C: -40° to 80°
Pressure:: 25 psi (2 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
Sensor rating: NEMA 6 (IP68)
Sensor material: -13X1: PP, -53X1: PVDF
Process mount: 3/4” NPT (3/4” Rp)
Classification: General purpose
Compliance: CE

Handlekurv
Mer informasjon

Beskrivelse

Flowline Switch-Tek™ LV10 Flottør nivåbryter – vertikal

APPLICATION

The general purpose float liquid level switch provides high or low liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include potable water and boric acid. The baffle body eliminates level switch chatter caused by turbulence. The submersible PP or PVDF level switch sensor is mounted vertically inside the tank, and connected to a PLC or relay controller.

FEATURES

  • Baffle body and stabilized float dampen out switch chatter
  • Submersible PP or PVDF sensor and cable for corrosive liquids
  • 15VA dry contact selectable NO or NC state via wiring selection
  • Compatible with Smart Trak and Switch-Pak installation fittings



Datablad

Manual

Tilleggsinformasjon

Sensormateriale

PP, PVDF

Gjengetype

3/4″ NPT, 3/4″ G

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
