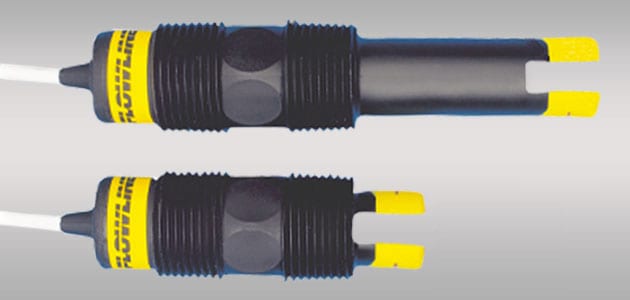

Flowline Switch-Tek™ LU10 Ultrasonisk Nivåbryter

Orientation: Universal
Accuracy: ± 1mm in water
Repeatibility: ± 0.5mm in water
Supply voltage: 12-36 VDC
Contact type: (1) SPST relay
Contact rating: GP: 60 VA, IS: 32 VDC @ 0.5A
Contact output: Selectable NO / NC
Process temp.: C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
Sensor rating: -1XX5: NEMA 6 (IP68), -2XX5: NEMA 4X (IP65)
Cable length: 3m
Process mount: 3/4” NPT (3/4”” G / Rp)
Mount. gasket: Viton®
Classification: Intrinsically safe
Certificate: CSA, LR 79326
Compliance: CE
Approvals: Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III
Parameters: Vmax = 32V, Imax = 300 mA, Pmax = 1.3W, Ci = 0 µF, Li = 0 µH

Handlekurv
Mer informasjon

Beskrivelse

Flowline Switch-Tek™ LU10 Ultrasonisk Nivåbryter

APPLICATION

CSA approved for use in hazardous locations, the intrinsically safe ultrasonic liquid level switch provides high or low liquid level detection of chemical, solvent or low viscosity petroleum based liquids with a 1A relay output. Media examples include hydrochloric acid, acetone and diesel fuel oil. The submersible PP or PFA level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.

FEATURES

  • CSA approved intrinsically safe for use in hazardous environments
  • Submersible PP or PFA Teflon® sensor and cable for corrosive liquids
  • 60VA SPST relay selectable NO or NC via power supply wiring polarity
  • Compatible with Smart Trak and Switch-Pak installation fittings



Datablad

Manual

Tilleggsinformasjon

Materiale

PP, PFA

Sensor lengde

Kort, Lang

Gjengetype

3/4″ NPT, 3/4″ G

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
