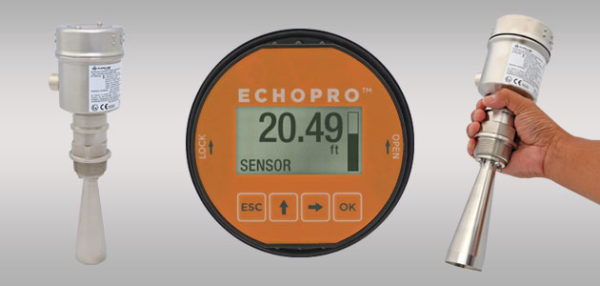

Flowline EchoPro® LR16 Egensikker Radar Nivåsensor

Range: 30cm to 30m
Frequency: 26 GHz.
Accuracy: ± 3mm
Dead band: 30cm
Beam angle: – 20: 18º, – 30: 12º, – 40: 8º
Configuration: Push button, HART 7
Supply voltage: 21.6 to 26.4 VDC
Signal output: 4-20 mA, two-wire, HART 7
Process temp.: C: -40º to 150º
Pressure: -14.5 to 150 psi (-1 to 10 bar)
Enclosure rating: IP67
Process mount: 1-1/2” NPT
Classification: Intrinsically safe
Approvals: ATEX  IIG Ex ia II C T6…T3 Ga; IEC Exia IIC T6…T3 Ga; CSA Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; (T6…T3) Class I Zone 0 AEx ia IIC (T6…T3) Ga Zone 20 AEx ia IIIC (T76ºC to T146ºC) Da Ex ia IIC (T6…T3) Ga Ex ia IIIC (T76ºC to T146ºC) Da
Certification: FCC
Compliance: CE, CRN, RoHS

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Handlekurv
Mer informasjon

Beskrivelse

Flowline EchoPro® LR16 Egensikker Radar Nivåsensor

APPLICATION

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 98.4’ (30m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact liquid level sensor is intended for petroleum, water, wastewater and diluted chemical storage or process conditions in above or below grade tanks of any material. Select this sensor for challenging process conditions with diluted or non-corrosive media, light surface foam or agitation, higher temperature or pressure, condensation or vapor, and installation in a tank adapter, flange fitting or metal stand-pipe. Typical applications include bulk storage, tanker truck, RO storage, process tank, waste sump and neutralization tanks.

FEATURES

  • Rugged 316L stainless steel antenna and process mount
  • Configuration via push button display or HART communicator
  • 26 GHz. pulse radar is unaffected by vapor or condensation
  • 12” (30cm) dead band enables utilization of the entire tank
  • LCD displays level in feet or meters with percent of span bar
  • Optional display mode indicates the echo signal return curve
  • Auto-temperature compensation for accurate measurement
  • Fail-safe diagnostics with selectable signal fail-safe outputs
  • Recognition, storage and rejection of false echo signal returns
  • IP67 stainless enclosure with polycarbonate display window



Datablad

Manual

Quick Start





Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.

Tilleggsinformasjon

Horn

48mm, 78mm, 98mm
