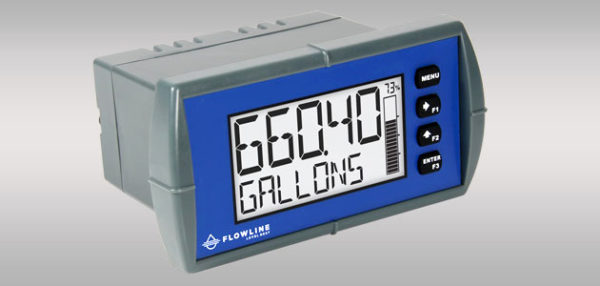

Flowline DataLoop™ LI23 Nivåmåler indikator med alarm

Display type: LCD, 5-digit top / 8-digit bottom
Display units: Engineering
Display output: -9999 to 99999 (top) / -9999999 to 999999999 (bottom)
Display height: 17.8mm top / 10.2mm bottom
Decimal point: Floating
Backlight: LED
Configuration: Push button
Sensor input: (1) 4-20 mA transmitter
Loop power: 12-30 VDC
Voltage drop: 1.5 VDC w/o backlight, 4.5 VDC w/ backlight
Contact type: -10_1: N/A; -12_1: (2) SPST relays (latching)
Contact rating: -10_1: N/A; -12_1: 1A @ 250 VAC / VDC res. load
Contact delay: -10_1: N/A; -12_1: 0-9.999 seconds
Repeater output: -1_01: N/A; -1_11: 4-20 mA, 7-30 VDC ext. power required
Process temp.: C: -40° to 75°
Enclosure type: 1/8 DIN, panel mount
Enclosure rating: NEMA 4X (IP65) faceplate
Enclosure mat’l: PPE & PS blend
Classification: General purpose
Compliance: CE

Mer informasjon


Flowline DataLoop™ LI23 Nivåmåler indikator med alarm


The general purpose loop powered tank or silo level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter, and is available with two optional relays and an isolated 4-20 mA repeater. Select this panel mount indicator for use with general purpose two-wire level sensors. For field mount installation, add a single or two indicator NEMA box with optional flash and/or audible alarm.


  • LCD main display with secondary unit and bar graph display
  • Easy configuration via the push button display module
  • Available with 2 latching relays and isolated 4-20 ma repeater
  • DIN enclosure with NEMA 4X faceplate and shallow case
  • Linear, square root and programmable exponent functions
  • Non-volatile memory with security password protection
  • Available with NEMA boxes and tank alarm accessories




Quick Start



Ingen, 2 relé

4-20mA Repeater

Med, Uten



Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
