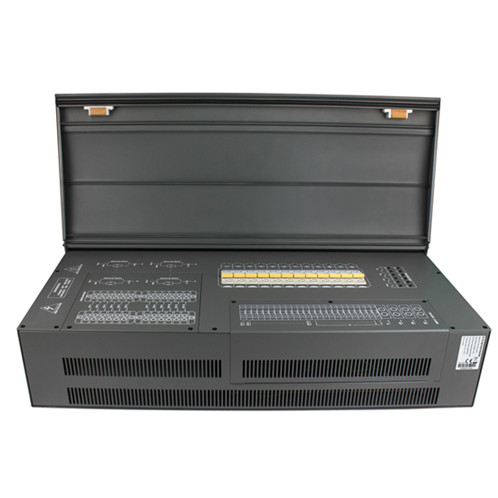

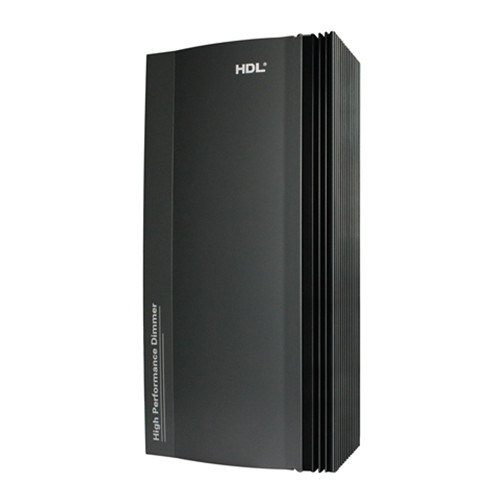

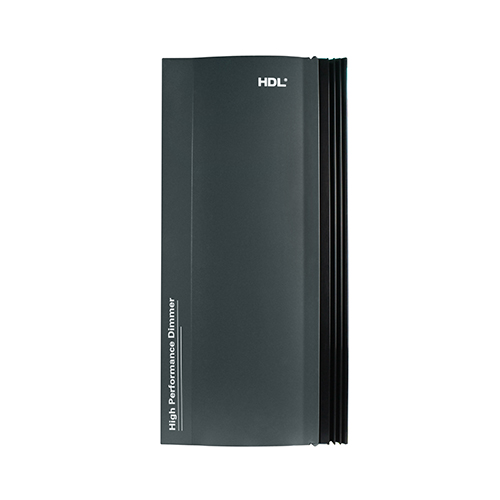

12CH 10A High Power Leading Edge Dimmer
12CH 10A High Power Leading Edge Dimming Actuator is
a silicon controlled rectifier module with 12 channels output. The actuator adopts HDL Buspro communication,
which has scene controller and fire protection control output. In addition, the load test function can be added to the
actuator according to users’ requirement. It can be used in
intelligence lighting, switch control, etc.
■ 10 Bit dimming accuracy.
■ 12-channel dimming outputs.
■ LED indicator status indication.
■ Scene controller.
■ Up to 12 separate areas, each area has 99 scenes
and the maximum running time is 60 minutes.
■ Up to 99 sequences, each sequence has 99 steps
and the time interval is 60 minutes for each step,
each sequence has 4 running modes including
“forward”, “backward”, “forward and backward” and
■ Low, high, max threshold for each channel.
■ Each channel has emergency bypass button and
debugging bypass button
■ Each scene, area, sequence, channel should mark
■ ＊Each channel has current load detection.
■ ＊Each channel has MCB status detection.
■ ＊MCB switch trip alarm.
■ ＊Broken light alarm.

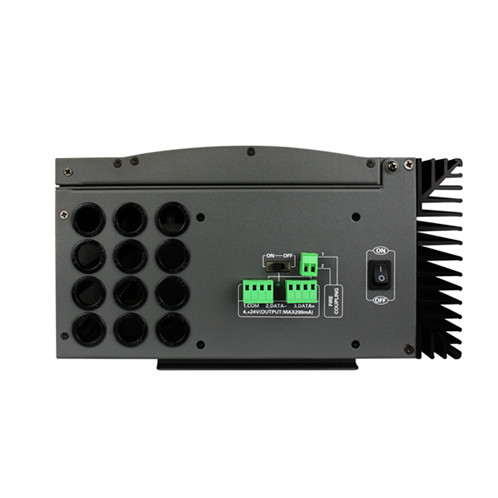

■ Communication: HDL Buspro
■ Provides 250mA current(24V DC) for HDL Buspro.
■ Fire protection switch.
■ Short circuit and overload protection, PE protection.
■ Remote programming and management.
■ Device can be restored to previous scene or specified scene, sequence.
Note: functions with * are optional.
