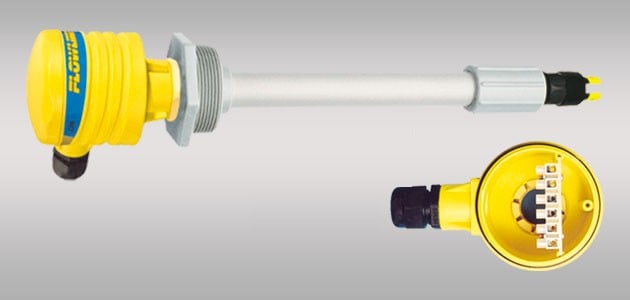

Flowline Switch-Pak™ AX1X Høyt/lavt nivåbryter med koblingsboks

Length: 15cm to 3m
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Orientation: ± 20º vertical
Switch points: 1 (factory set)
Supply voltage: AV16: N/A, AU18: 12-36 VDC, AZ18: 12-30 VDC
Contact type: AV16: (1) SPDT reed, AU18 / AZ18: (1) SPST relay
Contact output: Selectable NO / NC
Process temp.: C: -40° to 80°
Installed height: 9.1cm above tank process mount
Pressure: AV16: 25 psi (1.7 bar), AU18 / AZ18: 150 psi (10 bar)
Enclosure rating: NEMA 4X (IP65)
Process mount: -X243: 2” NPT, -X247: 1-1/2” G
Classification: AV16 / AZ18: general purpose, AU18: intrinsically safe (see LU10 data sheet for details)
Compliance: CE

Handlekurv
Mer informasjon

Beskrivelse

Flowline Switch-Pak™ AX1X Høyt/lavt nivåbryter med koblingsboks

APPLICATION

The intrinsically safe or general purpose level switch package provides high or low liquid level detection with one relay or reed switch output, and a compact junction box for wiring termination. Available in three level sensor technologies, choose the sensor type based upon your application media and classification. Select ultrasonic for chemicals and light weight oils; vibration for wastewater with light coating or scaling; and buoyancy for clean water and non-coating chemicals. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, connected to a PLC or relay controller.

FEATURES

  • Rugged PP or PVDF construction for use with corrosive liquids
  • Available in intrinsically safe and general purpose classifications
  • 60VA relay or 15VA dry contact switches selectable NO or NC via wiring
  • Offered in three sensing technologies for broad application coverage
  • PP enclosure rated NEMA 4X with swivel base for conduit alignment



Datablad

Manual

Tilleggsinformasjon

Sensortype

Ultrasonisk, Flottør, Vibrasjon

Utgang

15 VA, 0.25A max., 60 VA, 1A max

Materiale

PP, PVDF

Gjengetype

2″ NPT, 1-1/2″ G

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
