Produktnummer: LI40-1001 Kategori: , Stikkord: , , ,

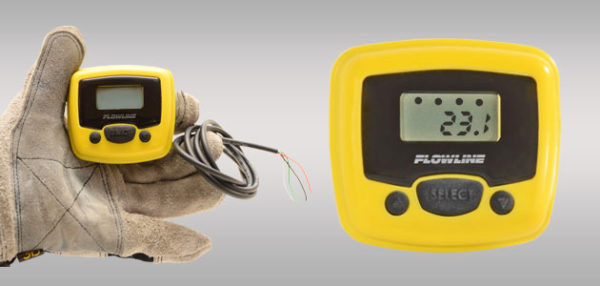

Flowline PodView™ LI40 Indikator for EchoPod

Display type: LCD, 6-digit with 4 relay indicators
Display units: Engineering
Display output: -99999 to 999999
Character height: 9.5mm
Decimal point: Fixed
Dot indication: Relay status
User interface: Three button
Sensor input: (1) EchoPod sensor
Supply voltage: Provided by EchoPod
Operating temp.: C: -20° to 60°
Cable type: 4-conductor, #22 AWG
Enclosure rating: NEMA 4 (IP65) faceplate
Enclosure mat’l: Polycarbonate
Enclosure type: Panel mount
Button material: Silicon rubber
Classification: General purpose
Compliance: CE

Handle enkelt med PayPal
Rask, sikker og enkel betaling
Handlekurv
Mer informasjon

Beskrivelse

Flowline PodView™ LI40 Level Sensor Indicator

APPLICATION

Compatible with DL _ _ series EchoPod sensors, the general purpose level indicator displays the measured value, applicable relay status and set point configuration of the attached sensor, as the sensor was configured to operate by WebCal software. PodView requires no programming, and receives both power and data from the connected sensor. Through the indicator, users can adjust EchoPod relay set points in the field. PodView is installed up to 15’ (4.5m) away from the sensor in a panel or NEMA enclosure.

FEATURES

  • Field mount indicator for use with EchoPod sensors
  • Indicates level or volume and EchoPod relay status
  • Enables EchoPod relay set point changes in the field
  • Powered directly by the attached EchoPod sensor
  • Repeats EchoPod sensor data with no programming
  • Corrosion resistant enclosure with NEMA 4 faceplate



Datablad

Manual

Quick Start

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
