Produktnummer: LR31-0021-10-00 Kategori: , Stikkord: ,

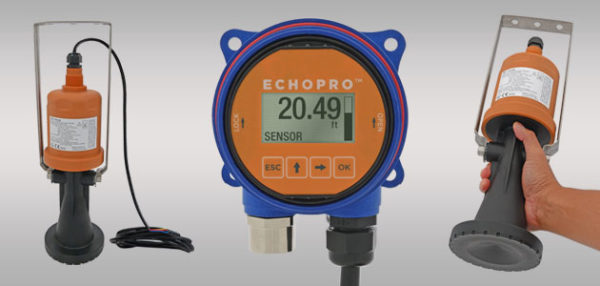

Flowline EchoPro® LR31 Egensikker Radar Nivåsensor

Sensor

Range: 30cm to 30m
Frequency: 26 GHz.
Accuracy: ± 3mm
Dead band: 30cm
Beam angle: 12º
Supply voltage: 21.6 to 26.4 VDC
Signal output: 4-20 mA, two-wire, HART 7
Process temp.: C: -40º to 100º
Pressure: Atmospheric
Enclosure rating: IP68
Process mount: 304 SS bracket or 1” NPT

Display
Display type: LCD, dot matrix
Configuration: Push button, HART 7
Enclosure type: Wall mount
Enclosure rating: IP67

Common
Classification: Intrinsically safe
Approvals: ATEX  IIG Ex ia II C T6…T3 Ga; IEC Exia IIC T6…T3 Ga; CSA Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; (T6…T3) Class I Zone 0 AEx ia IIC (T6…T3) Ga Zone 20 AEx ia IIIC (T76ºC to T146ºC) Da Ex ia IIC (T6…T3) Ga Ex ia IIIC (T76ºC to T146ºC) Da
Certification: FCC
Compliance: CE, RoHS

Handlekurv
Mer informasjon

Beskrivelse

Flowline EchoPro® LR31 Egensikker Radar Nivåsensor

APPLICATION

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 98.4’ (30m) with a 4-20 mA signal output, and is configured via its remote push button display module or HART communicator. The non-contact liquid level sensor is intended for industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or open channel applications located below or above grade. Select this sensor for challenging process conditions that may include light surface foam or agitation, small trash or plant material, wind, condensation or vapor. Each comes with a 32.8’ (10m) cable, mounting bracket and display module. The sensor is designed for bracket mount installation suspended above the liquid level.

FEATURES

  • Rugged IP68 sensor enclosure with 304 SS mounting bracket
  • Configuration via push button display or HART communicator
  • 26 GHz. pulse radar is unaffected by sump process conditions
  • Wall mounted display with windowed enclosure rated IP67
  • 12” (30cm) dead band enables utilization of the entire sump
  • LCD displays level in feet or meters with percent of span bar
  • Optional display mode indicates the echo signal return curve
  • Auto-temperature compensation for accurate measurement
  • Self diagnostics with selectable fail-safe signal outputs
  • Recognition, storage and rejection of false echo signal returns



Datablad

Manual

Quick Start

Eksempel applikasjoner



Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
